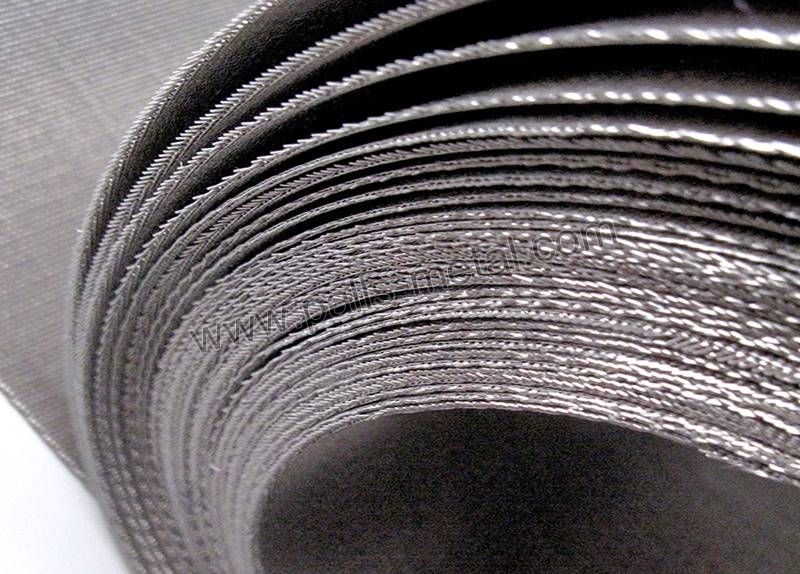

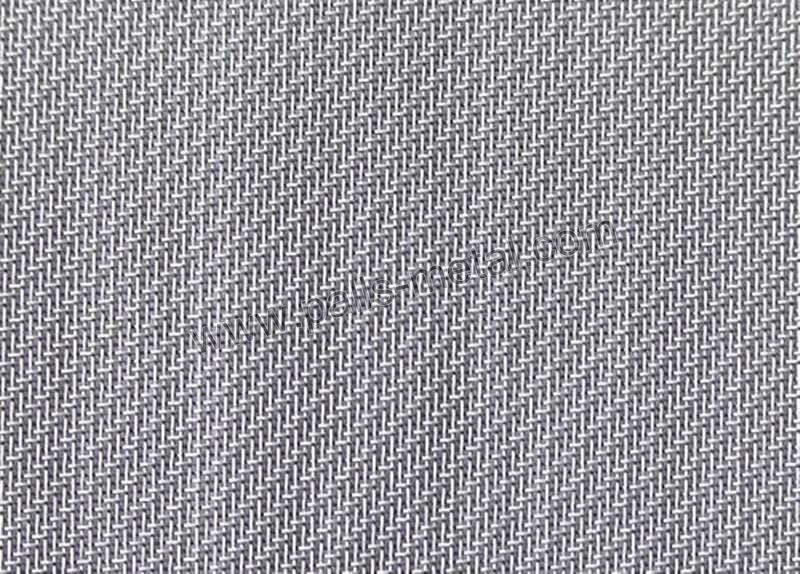

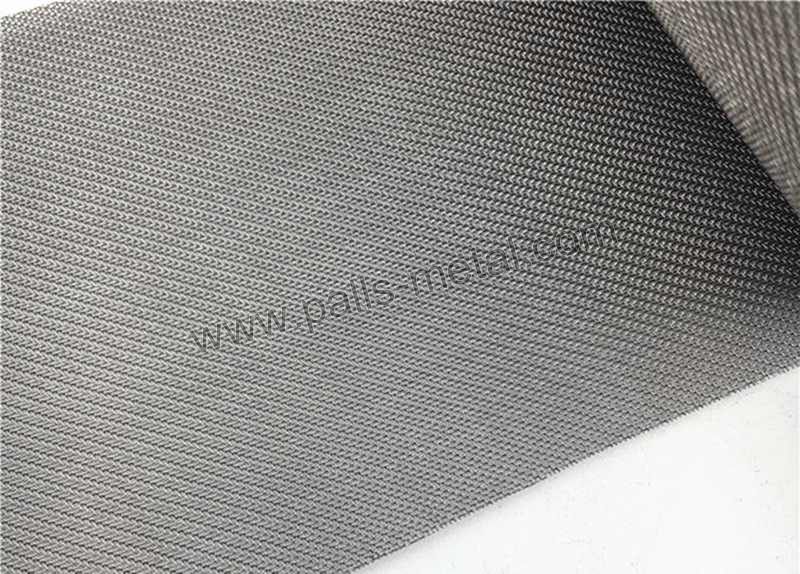

Twilled Dutch Weave Wire Mesh

Twilled Dutch Weave Wire Mesh is made with a combination of the Hollander Weave and the twill weave. This type enables a strong wire cloth with super fine filtration.

Inquire Now Next Product

Description

Plain twilled weave mesh
Mesh Warp x Weft	Wire mm Warp x Weft	Aperture μm	Effective Section area %	Weight kg/m2	Thickness mm
20×270	0.25×0.2	119	17.6	3.01	0.65
20×200	0.355×0.28	118	12.1	4.55	0.915
24×300	0.28×0.18	110	19.6	2.90	0.64
20×150	0.45×0.355	101	7.5	5.73	1.16
30×340	0.28×0.16	89	17.9	2.76	0.60
30×270	0.28×0.20	77	11.2	3.28	0.68
40×540	0.18×0.10	70	23.5	1.67	0
40×430	0.18×0.125	63	15.4	2	0
50×600	0.125×0.09	51	17.2	1	0
50×500	0.14×0.11	47	12	2	0.364
65×600	0.14×0.09	36	-	2	0.32
70×600	0.14×0.09	31	10.1	1	-
78×760	0.112×0.071	-	13.5	1.20	0
78×680	0.112×0.08	29	10	1	0
80×680	0.112×0.08	28	10	1	-
90×850	0.10×0.063	26	13	1	0
90×760	0.10×0.071	24	9.6	1	0.242
100×760	0.10×0.071	20	7	1	0
100×850	0.10×0.063	22	10	1	0
130×1100	0.071×0.05	17	9.4	1	0
130×1200	0.071×0.045	18	12	1	0
130×1500	0.063×0.036	21	1	1	0
150×1400	0.063×0.04	15	1	2	0
160×1500	0.063×0.036	-	12	2	0
165×1500	0.063×0.036	14	11.4	1	-
174×1700	0.063×0.032	13	13	0.60	0
165×1400	0.063×0.04	-	9	1	0
174×1400	0.063×0.04	11	7.4	1	-
203×1500	0.056×0.036	9	6	1	0
203×1600	0.05×0.032	10	9	1	0.114
216×1800	0.045×0.03	-	9	1	0.105
250×1600	0.05×0.032	-	4	0.56	0
250×1900	0.04×0.028	8	8	0	0
285×2100	0.036×0.025	7	7.2	0	0
300×2100	0.036×0.025	6	6	0	-
317×2100	0.036×0.025	5	5	0	-
325×2300	0.036×0.024	4	4	0	-
363×2300	0.032×0.022	-	5	0	0
400×2700	0.028×0.02	-	5	0	0
500×3500	0.025×0.015	3	4.9	0	0.055
