Standard: ASME, ANSI. MSS, API, AWWA, JIS, DIN, GB. SH and HG.
Size ranges from 1/2" to 100" , Thickness from SCH5S TO SCHXXS.
Materials: Stainless Steel, Carbon Steel, Alloy Steel
| Standard Fittings | ||
| Type of product | Dimensions | Execution |

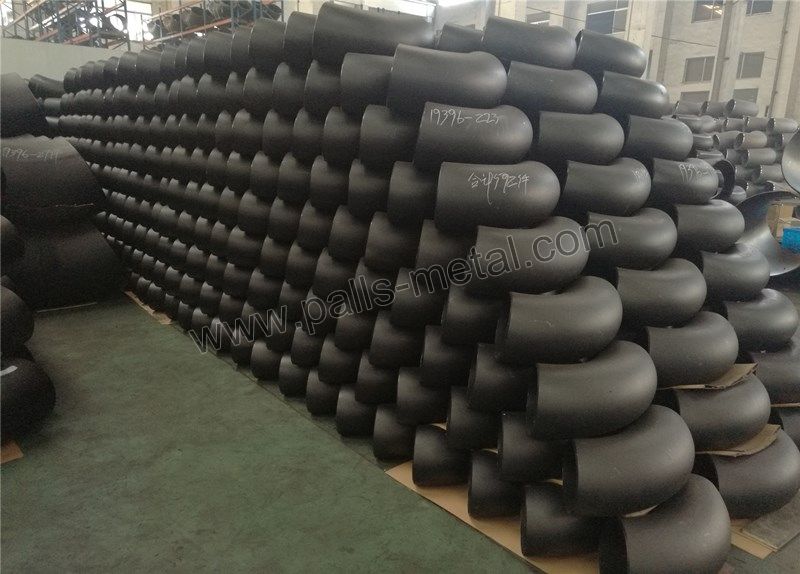

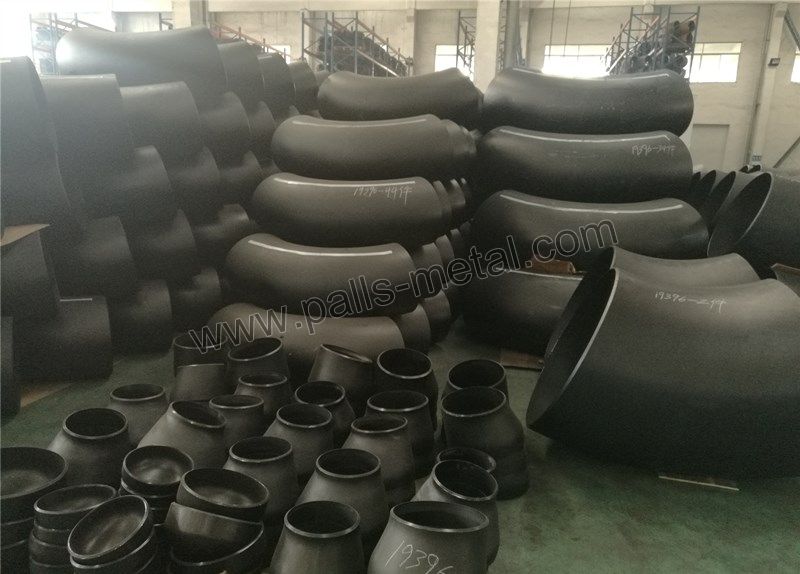

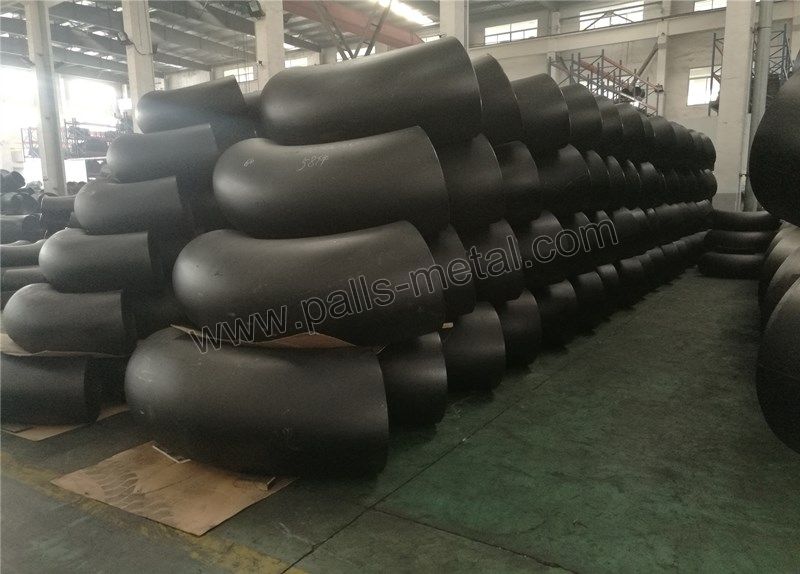

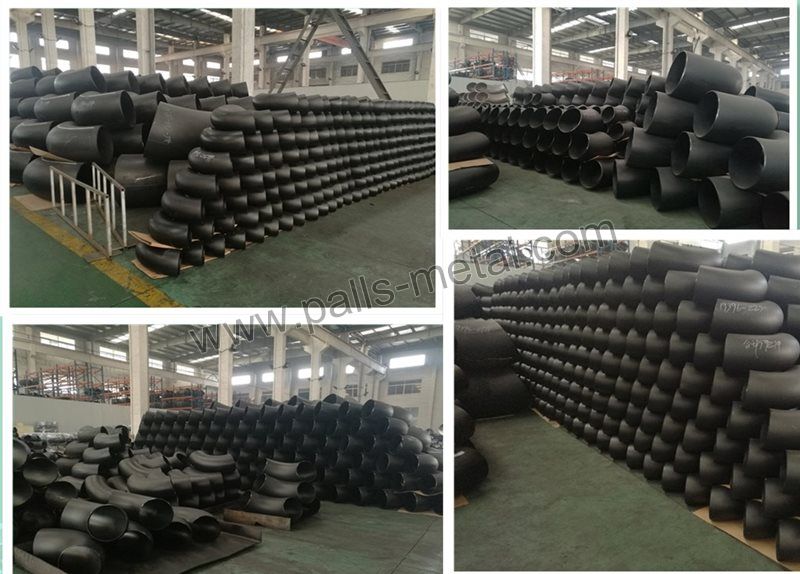

| Elbows | Up to 100" | Seamless and Welded(cold formed, hot formed and by mandrel) |

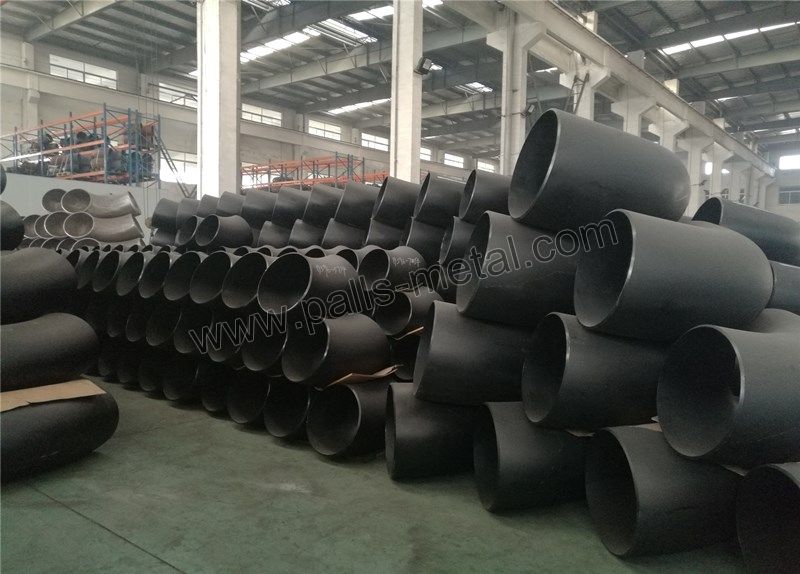

| Equal and Reducing Tees | Up to 100" | Seamless and Welded (cold formed and hot formed ) |
| Concentric and Eccentric Reducers | Up to 100" | Seamless and Welded (cold formed and hot formed ) |
| Caps | Up to 100" | Seamless (cold formed and hot formed ) |
| Special Fittings | ||
| Type of product | Dimensions | Execution |
| Reducing Elbows | Up to 36" | Seamless and Welded |
| Bends Special Radius (2.5D-3D-5D) | Up to 48" | Seamless and Welded |
| Barred Tees | Up to 48" | Seamless and Welded (cold formed and hot formed ) |
| Equal and Reducing Crosses | Up to 48" | Seamless and Welded |
| Equal and Reducing Laterals | Up to 48" | Seamless and Welded |
| BUTTWELDING FITTINGS | ||
| SIZE RANGE：1/2"–100" | THICKNESS：2mm–70mm | |
| Material Grades: | ||
| ASTM A234: WPB, WPC, P11, P22, P5, P9, P91, P92 | ||
| ASTM A403: 304/304L, 316/316L, 317/317L, 321, 347, 304H, 316H, 321H, 347H, 310S, 316Ti | ||
| ASTM A420:WPL6 | ||
| API 5L: X42, X46, X52, X60, X65, X70 ASTM A860: WPHY42, 46, 52, 60, 65, 70 | ||
| ASTM A815: 31803, 32750, 32760, 32205 ASTM B363: WP T1, T2, T3 | ||
| ASTM B366: UNS N08020, N06625, N08800, N08825, 08904 (ALLOY 20, 625, 800, 825, 904L) UNS S 31254/254SMO | ||
| EN10253- 4: 1.4301, 1.4307, 1.4404, 1.4541, 1.4571 | ||
| EN10253- 2: 1.0345, 1.0425, 1.7380 | ||
| Applicable standard: | ||
| ASME B16.9, API 6H, EN10253-2, EN10253-4, MSS SP-43, MSS SP-75, JISB2311, JISB2312, ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97 | ||
